REDYREF: Kiosk Solutions for Every Environment

As an industry leader in interactive kiosk design and fabrication with more than 100 years of experience in enclosure manufacturing, we are experts in understanding client needs over multiple deployment settings and environments. REDYREF offers several outdoor kiosk solutions, including semi- and fully-custom options.

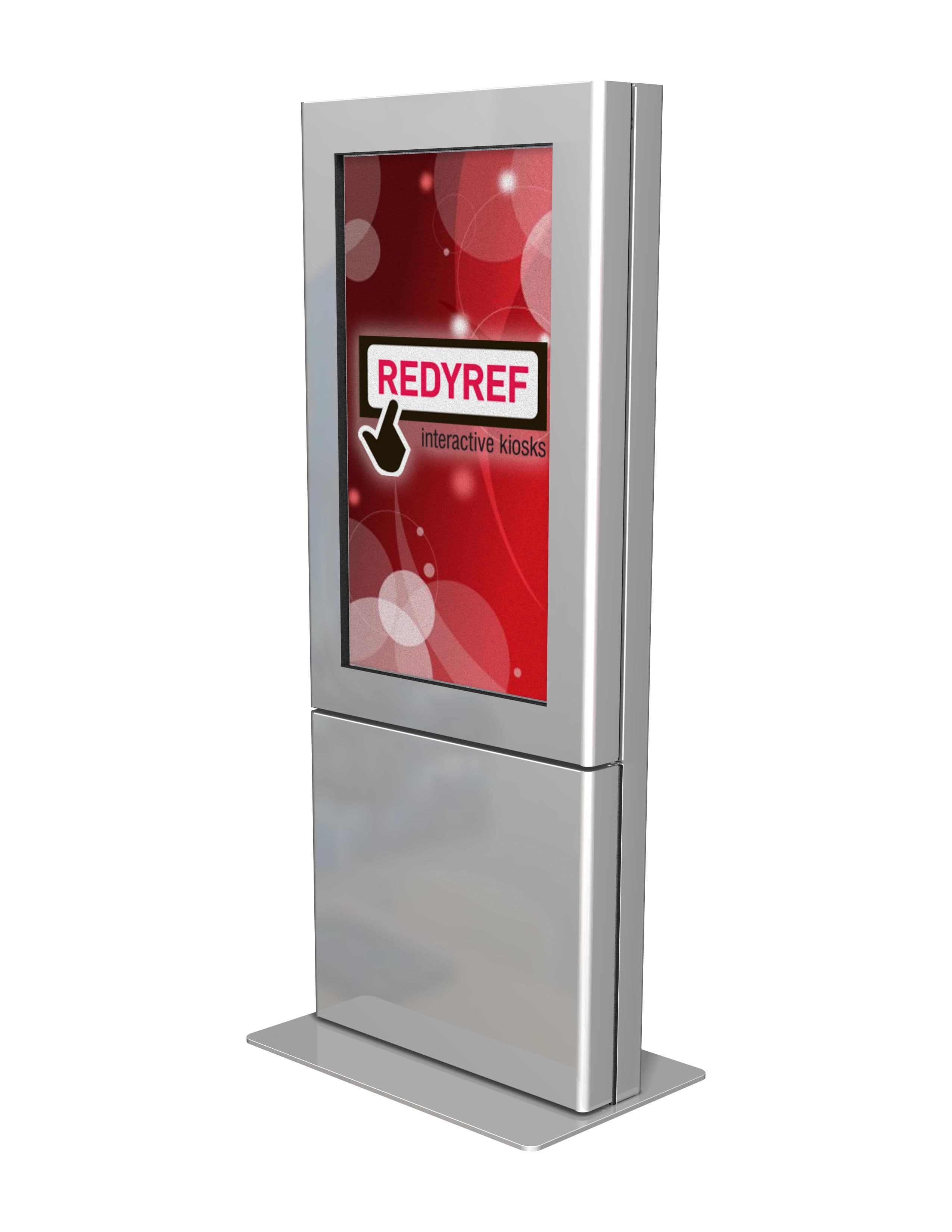

Skyline

Ideal for outdoor digital signage, but makes a bold statement across applications, whether as a smart city kiosk or an indoor, multi-building commercial office directory.

With its crisp, clean lines and portrait-style orientation, the Skyline freestanding kiosk was designed with proportions reminiscent of a sleek high-rise skyscraper. Although it is one of our most popular designs for outdoor digital signage, it is an excellent choice for a variety of other applications both indoor and out. This includes interactive wayfinding across large office and hospital campuses, “smart city” placement in bustling metropolitan areas, and in transportation hubs, such as train stations and airports.

The Skyline’s generous display size lends itself to easy end-user interaction, including the use of typeable, on-screen keyboards. Superior brandability is also a key feature of the Skyline, due to its ample exterior stainless steel surface area which can be customized in a variety of powder coat colors.

Whether configured with a touch or non-touchscreen display, the Skyline makes a bold statement across environments, from outdoor advertising displays in busy cities, to directories in indoor multi-building campuses.

Kiosk Specs

  • 70”H x 28 5/8” W x 6 3/4” D – 175 lbs.

Base Model Features

  • 42” Display (Touch or Non-Touch/Static)
  • Portrait Orientation
  • Free-Standing
  • Steel-Ruggedized Construction
  • Powder Coat Finish – Silver
  • Front Access Door with Key Lock
  • Mount: Baseplate or To Floor Through Baseplate
  • ADA Capable
  • 15 Amp Maximum Draw
  • Indoor Temperature Rated (Outdoor Available)
  • 1-Year Warranty

Optional Components and Integrations

  • PC with Windows O/S, Ethernet LAN connection
  • Credit Card Reader (Swipe, EMV, NFC)
  • Available Platforms: Windows, Android, Linux
  • Custom Component Options Available – Call to Discuss
  • On-Site and Extended Warranty Available
  • Kiosk Management Software
  • Signage – Silk Screen or Vinyl Decal/Wrap
  • Other Powder Coat Colors
  • Outdoor Model – Includes 42” Sunlight Readable Display with PCAP Touch, Thermal Control System, Stainless Steel Construction

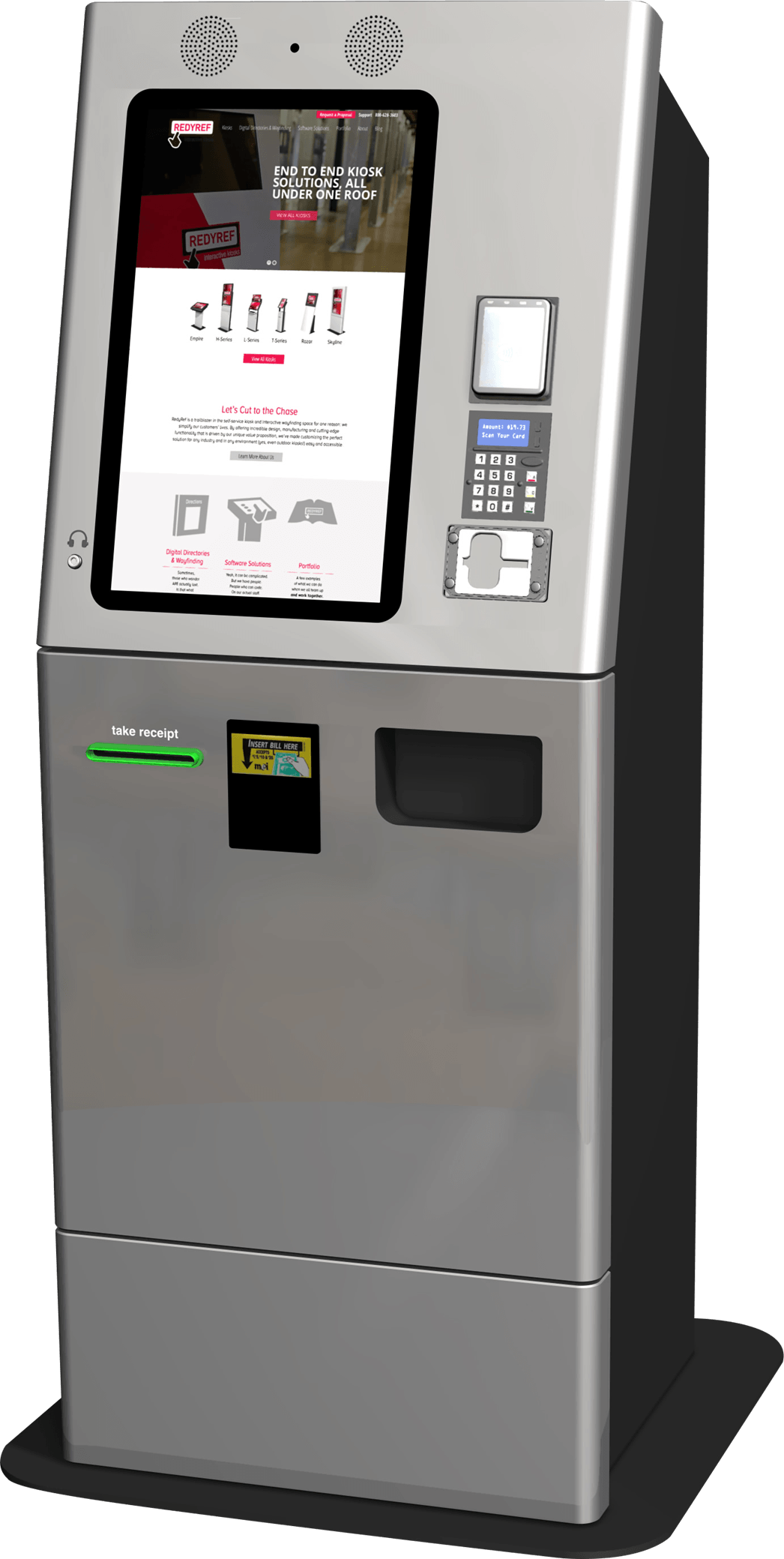

Bazooka 2.0

A favorite for both indoor and outdoor applications, including retail, self-pay, financial and self-service ticketing needs.

Bazooka was designed to withstand just about anything the environment — both indoors and out — can throw at it. From self-pay amusement park concessions in the high heat and humidity of a Florida summer, to winter ski-lift ticketing in the cold, snowy Rockies, the Bazooka stands ready to perform.

The Bazooka is an excellent choice for indoor applications, too. It can be configured to perform tasks including bill payment processing, customer check-in and even retail barcode scanning. With additional optional integrations such as bill/coin collection and receipt printing available, it is a modular and incredibly flexible interactive kiosk choice.

Bazooka’s exterior offers ample space for branding and its coloration may be selected from a wide variety of different powder coat finishes. Its modular door panel design allows for even greater customization when required, making the Bazooka digital kiosk a favorite for multiple applications, including retail, financial and self-service ticketing needs.

Kiosk Specs

  • 60-3/8” H x 21” W x 20-3/4” D – 250 lbs

Base Model Features

  • 22” Display with PCAP Touch
  • Portrait Orientation
  • Free-Standing
  • Steel Ruggedized Construction
  • Powder Coat Finish – Black with Silver
  • Front Access Door with Key Lock
  • Mount: Baseplate or to Floor Through Baseplate
  • ADA Capable
  • 15 Amp Maximum Draw
  • Indoor Temperature Rated (Outdoor Available)
  • 1-Year Warranty

Optional Components and Integrations

  • PC with Windows O/S, Ethernet LAN Connection
  • Printer (Receipt, Ticket, 8.5 x 11)
  • Credit Card Reader (Swipe, EMV, NFC)
  • Bar Code Reader
  • Fingerprint Reader
  • Webcam
  • Bill or Coin Acceptor
  • Bill or Coin Dispenser
  • Speakers with Amp
  • Wifi – External Antenna
  • 19” Display with PCAP Touch
  • Available Platforms: Windows, Android, Linux
  • Custom Component Options Available – Call to Discuss
  • On-Site and Extended Warranty Available
  • Kiosk Management Software
  • Signage – Silk Screen or Vinyl Decal/Wrap
  • Other Powder Coat Colors
  • Outdoor Model includes 22” Sunlight Readable Display with PCAP Touch, Thermal Control System & Stainless Steel Construction

Media Tower

Designed to withstand heavy use indoor and out, whether deployed as a “smart city” kiosk or as a shopping mall wayfinding system.

The Media Tower was designed to withstand even the most rugged and extreme environments, both indoor and out. Whether deployed as a “smart city” information hub in a major Southern metropolis or as the primary directional and wayfinding system for a modern lifestyle center in a snowy Northern suburb, the Media Tower can handle it all.

Ample exterior surface area and optional illuminated signage allow the Media Tower to serve as a “brand beacon,” a powerful and engaging platform for solidifying messaging while making a bold statement across environments. Use it to create a flawless wayfinding experience for users or make them social media stars by integrating the optional HD camera (smart city selfie, anyone?).

Durable, flexible and customizable with a wide variety of available components, the Media Tower is an ideal digital kiosk choice across environments.

Kiosk Specs

  • 90-1/2” H x 44-1/16” W x 14” D – 450 lbs.

Base Model Features

  • 55” Display (Touch or Non-Touch)
  • Portrait Orientation
  • Free-Standing
  • Outdoor Temperature Rated – 0°F to 130°F (Indoor Available)
  • Stainless Steel Ruggedized Construction
  • Powder Coat Finish – Black and Stainless Steel
  • Front Access Door with Key Lock
  • Mount: To Floor Through Baseplate
  • ADA Capable
  • 15 to 20 Amp Maximum Draw
  • 1-Year Warranty

Optional Components and Integrations

  • PC with Windows O/S, Ethernet LAN Connection
  • Credit Card Reader (Swipe, EMV, NFC)
  • Printer (Receipt, Ticket)
  • Webcam
  • Speakers with Amp
  • 911 Call Panel
  • Wireless Internet Connectivity
  • USB Charging
  • Audio Jack
  • Microphone
  • Available Platforms: Windows, Android, Linux
  • Custom Component Options Available – Call to Discuss
  • Dual-Sided Available
  • On-Site and Extended Warranty Available
  • Kiosk Management Software
  • Signage – Backlit Signage, Silk Screen or Vinyl Decal/Wrap
  • Other Powder Coat Colors
  • Indoor Model – Includes 55” Display

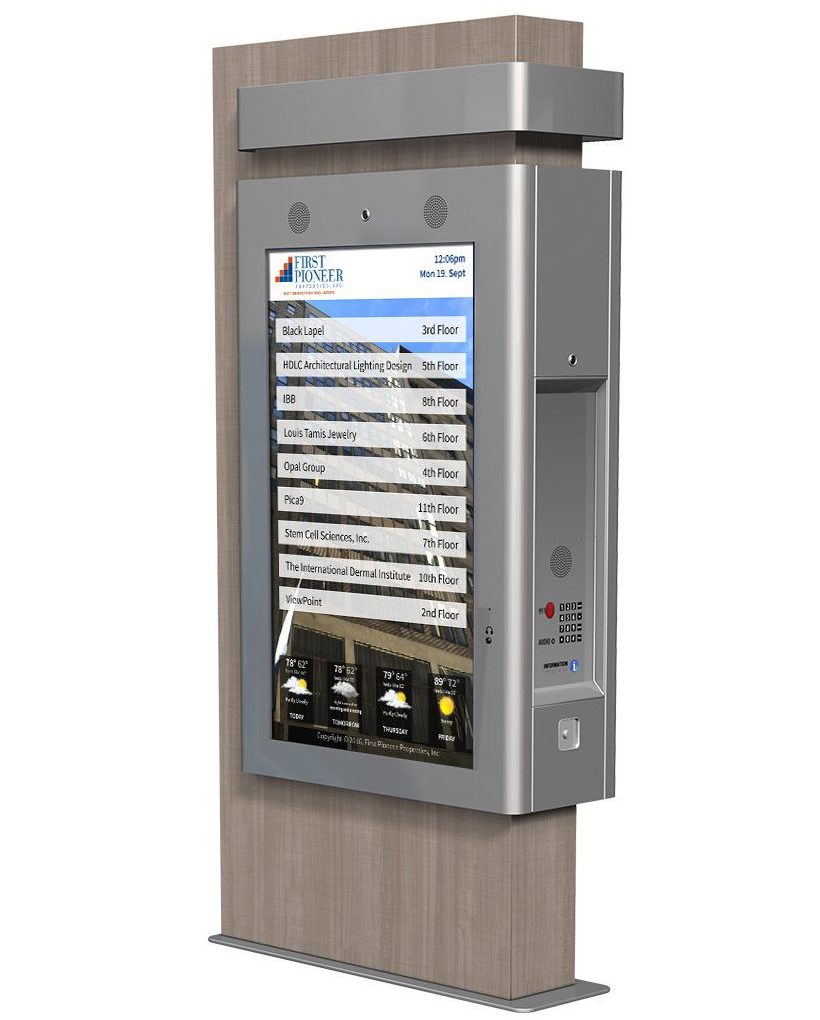

Media Tower Indoor/Outdoor Directory Kiosk in Light Wood Finish
